DRA v1.0
A DRA instance for multi-cloud IoT-application deployment.

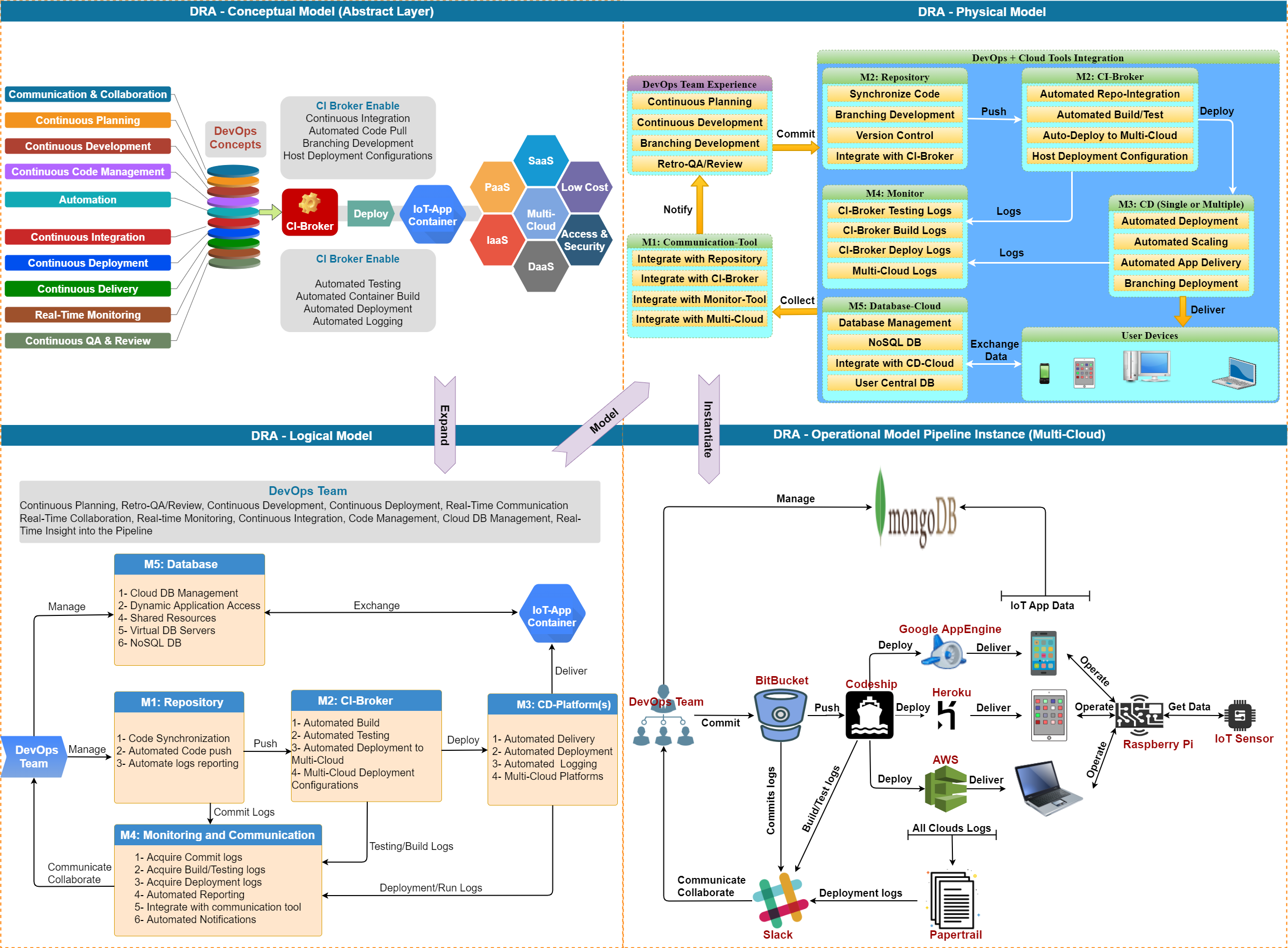

Instance diagram

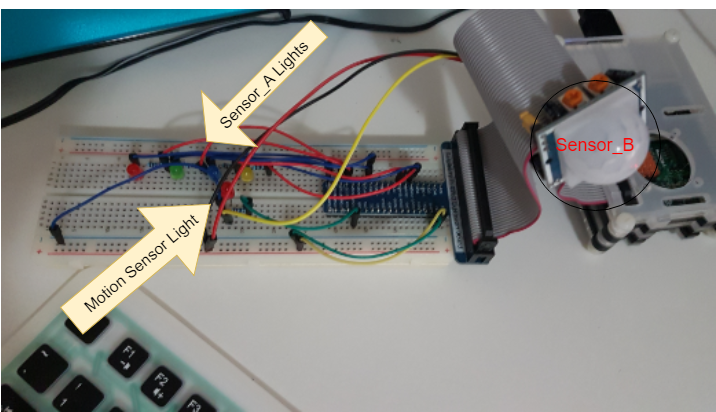

IoT devices
| Device | Description |
|---|---|
| Light Sensor | 4 LED lights connected to GPIO pins [13, 17, 19, 22] on a Raspberry Pi Model 3 B. |
| Motion Sensor | Motion Sensor + 1 LED connected to a single GPIO pin [12] on a Raspberry Pi Model 3 B. |
Scripts
| Script | Description |
|---|---|
| blink.py | A Python script that activates Sensor_A to blink (ON/OFF) 10 times each in sequential pattern. |
| readMotionSensor() | A Java method that reads and collects IoT-data from Sensor_B. Every time it detects a motion data=ON else data=OFF. |
